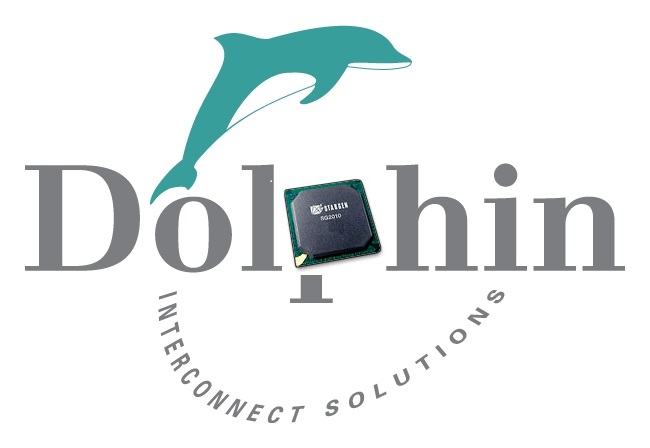

SG1010 StarFabric Switch

SG1010 StarFabric Switch

The SG1010 is a cascadable 6 port StarFabric switch that connects to other StarFabric switches or bridges to create StarFabric switch fabrics. The SG1010 switch provides 30 Gbps of aggregate, non-blocking, full-duplex switching capacity through six StarFabric links. Each link can simultaneously transmit and receive at 2.5 Gbps. A standard link is made up of four aggregated 622 Mbps LVDS differential pairs in each direction. Two 2.5 Gbps full-duplex links can also be bundled to create a 5 Gbps full-duplex link.

  • Four Classes of Service
  • Head-of-line blocking is limited
  • Link-by-link CRC checking on all traffic
  • LED indicators for each differential pair
  • Three routing methods
  • Supports software generated StarFabric Special Frames
  • IEEE standard 1149.1 JTAG interface
  • Credit Based flow control
Check out our latest products

Product Data

The SG1010 is a cascadable 6 port StarFabric switch that connects to other StarFabric switches or bridges to create StarFabric switch fabrics. The SG1010 switch provides 30 Gbps of aggregate, non-blocking, full-duplex switching capacity through six StarFabric links. Each link can simultaneously transmit and receive at 2.5 Gbps. A standard link is made up of four aggregated 622 Mbps LVDS differential pairs in each direction. Two 2.5 Gbps full-duplex links can also be bundled to create a 5 Gbps full-duplex link.

The SG1010 supports three routing methods. Address routing, which allows PCI designs to be transparently migrated to StarFabric, supports PCI traffic over the fabric without requiring any software development. Existing PCI designs can quickly take advantage of StarFabric's performance and scalability through address routing, and can further enhance performance, features and reliability by moving to native StarFabric routing methods at a future time.

Path routing and multicast routing are StarFabric native routing methods that introduce advanced features like redundancy through failover, Quality of Service, security mechanisms and multi-processor fabrics. Dolphin provides software tools and libraries to take full advantage of these advanced features.

KEY PRODUCT FEATURES

Scalability and Performance
  • Six StarFabric links, 2.5Gbps, full duplex
  • Two links can be bundled to create a 5 Gbps link
  • 30 Gbps switching capacity
  • Head-of-line blocking is limited
  • Asymmetric link support
  • Compatibility
  • Three routing methods:
    • Standard PCI address routing
    • Path routing
    • Multi-cast routing
  • Standard PCI addressing supports 100% PCI software compatibility
  • Software compliant with the PCI Local Bus Specification Revision 2.2 and the PCI-to-PCI Bridge Specification Version 1.1.
  • Physical layer interface complies with the IEEE 1596.3 and TIA/EIA-644 Low-Voltage Differential Signaling (LVDS) standards.
  • Quality of Service
  • Credit-based flow control: Path-based (next turn) credits and Class of Service (CoS) credits
  • Four Classes of Service with separate buffering for each. Supported classes are:
    • asynchronous
    • isochronous
    • multicast
    • high priority traffic classes
  • Design limits head-of-line blocking
  • Dynamic bandwidth reservation protocol
  • Reliability, Availability and Serviceability
  • Link-by-link CRC checking on all traffic
  • Fault detection and isolation
  • Redundant path routing capability
  • Path protection capability on register accesses for security
  • Hot-pluggable linking
  • Additional Features
  • Flexible event dispatch functionality either locally or remotely
  • In-band PCI interrupt routing with legacy "swizzle" based on device number
  • Supports software generated StarFabric Special Frames
  • Supports two semaphores with six operations per semaphore
  • SROM interface for register pre-load and vital product data
  • IEEE standard 1149.1 JTAG interface
  • Eight general-purpose I/O pins with accessible registers
  • LED indicators for each differential pair
  • Feature Description
    Core Power Supply Vdd = 1.5V +/-5%
    I/O Power Supply Vdd = 3.3V +/-5%
    Operating Temperature 0 to 70 Degrees C
    Storage Temperature -55 to 125 Degrees C
    Power Dissapation 3W maximum
    Package 272 PBGA

    SG1010-A3

    L-SG1010-A3 (lead free)
