Dolphin PCIe 3.0 x4 SFF-8644 Cables

PCIe 3.0 cable MiniSAS-HD x4 The Dolphin PCIe adapter cards PXH820, PXH822, PXH824, PXH826, PXH830, PXH832, MXH830 and MXH832 and the 24 port MXS824 PCIe switch use standard quad SFF-8644 cable connectors and supports both Dolphin MiniSAS-HD / SAS-3 cables as well as cables compliant to the PCI-SIG External Cabling Specification 3.0 cables (PCIe 3.0). The PCIe 3.0 cables supports the new Cable Management Interface (CMI) used for sideband signaling.

Dolphin PCIe 3.0 x4 SFF-8644 copper cables with CMI support

Description Length Ordering code Documentation
1 meter PCIe 3.0 x4 SFF-8644 Copper Cable w/CMI 1 meter PCIe3C-1M Product Brief
3 meter PCIe 3.0 x4 SFF-8644 Copper Cable w/CMI 3 meter PCIe3C-3M Product Brief
4 - 5 meter PCIe 3.0 x4 SFF-8644 Copper Cable w/CMI 4 - 5 meter Contact Dolphin Product Brief

Custom lengths are available upon request. Please contact Dolphin for MOQ, price and lead time.



Dolphin PCIe 3.0 x4 PCIe copper cables without CMI support

Used with the PXH822, PXH826, PXH832 or MXH832 cards, some functionality will be limited as these cables does not support the Cable Management Interface functionality (CMI). Please consult the adapter users guide for more details. The PXH820, PXH824, PXH830 and MXH830 does not benefit from the CMI functionality.

Description Length Ordering code Documentation
1 meter SFF-8644 PCIe Gen3 x4 Copper Cable 1 meter MSC1M Product Brief
2 meter SFF-8644 PCIe Gen3 x4 Copper Cable 2 meter MSC2M Product Brief
5 meter SFF-8644 PCIe Gen3 x4 Copper Cable 5 meter MSC5M Product Brief

Custom lengths are available upon request. Please contact Dolphin for MOQ, price and lead time.

Dolphin PCIe 3.0 x4 SFF-8644 Fiber Cables

PCIe MiniSAS-HD-HD cables - iPassThe PXH820, PXH822, PXH830, PXH832, MXH830, MXH832 and MXS824 products fully supports the following PCIe 3.0 SFF-8644 based fiber optic AOC cables. Used with the PXH822, PXH832 or MXH832 cards, some functionality will be limited as these cables does not support the Cable Management Interface (CMI) functionality. Please consult the PXH822, PXH832 or MXH832 users guide for more details. The PXH820,, PXH830 and MXH830 currently does not benefit from the CMI functionality.

Description Length Ordering code
10 meter SFF-8644 PCIe Gen3 x4 Fiber Cable 10 meter MSFC10M
50 meter SFF-8644 PCIe Gen3 x4 Fiber Cable 50 meter MSFC50M
100 meter SFF-8644 PCIe Gen3 x4 Fiber Cable 100 meter MSFC100M

*CMI not supported. **Custom lengths are available upon request. Please contact Dolphin for MOQ, price and lead time.



Dolphin PCIe 3.0 SFF-8644 Fiber Pigtails

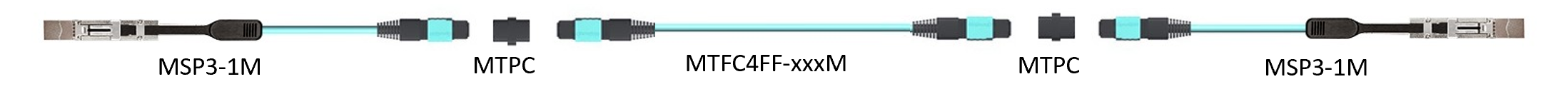

If you need to route the fiber cable through bulkheads or want flexibility on the length, two MSP4M-1M Optical Pigtails can be combined with one of the available MTFCFF x4 Optical Patch cables to create a reliable PCIe 3.0 x4 link. Please note you need two MTPC Fiber Couplers to create one x4 link. Please also note you need to clean the MPO fiber head each time the cable is connected. Dolphin recommends the FCMPO-Clean MPO cleaning kit available from Dolphin.

PCIe SFF-8644 cables

Description Length Ordering code Data Sheet
1 meter PCIe 3.0 x4 SFF-8644 Optical Pigtail 1 meter MSP3-1M  Data Sheet
10 meter PCIe 3.0 x4 Optical Patch Cable 10 meter MTFCFF-10M  Data Sheet
50 meter PCIe 3.0 x4 Optical Patch Cable 50 meter MTFCFF-50M  Data Sheet
100 meter PCIe 430 x4 Optical Patch Cable 100 meter MTFCFF-100M Data Sheet
MPO Fiber Coupler MTPC Data Sheet

*No CMI support. **For custom lengths (MOQ 10) contact Dolphin.



PCIe Cables for other products

PCIe 4.0 / SFF.-8644 cables for PCIe Gen 4.0 products.

iPass Cables used by PXH810, PXH812, MXH910, and MXH912.
