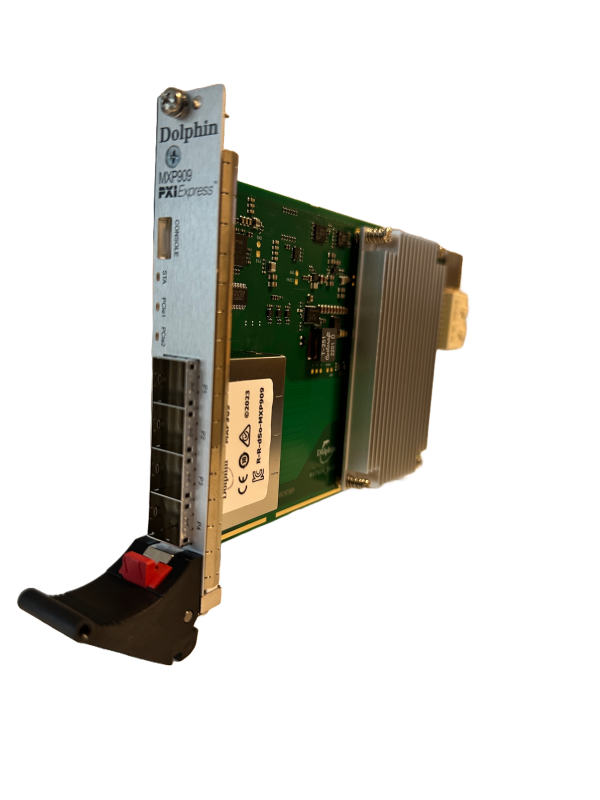

MXP909 PXIe Gen4 Transparent Peripheral Module

PXIe Gen4 Transparent Peripheral Module

Dolphin’s MXP909 PXIe / CompactPCI Express card is a powerful building block for PXIe systems. This PCIe 4.0 board enables PXIe systems to connect to other PXIe, CompactPCI Serial or and IO expansion systems.


  •  8 Lane PCIe backplane port
  • Up to 16 GT/S per lane
  • SFF-8644 Front Panel ports for PCIe over cable solutions
  • Transparent PXIe expansion
  • PCIe 4.0 SFF-8644 cables
  • 3U rack mountable
  • Port status LEDs
  • Copper and Fiber-optic cables
  • Microchip Gen 4.0 PFX chipset

MXP909 Product Data

The 3U MXP909 PXIe Peripheral  Module is designed to create a flexible and scalable CompactPCI Express / PXIe expansion solution. The MXP909 enables connectivity to other PXIe chassis utilizing the MXP924 PXIe switch card. or to

PCI Express Gen 4.0

The MXP909 is designed for PCIe Gen 4.0 link speeds in the backplane and via the front panel PCIe cable port. It will auto negotiate to the highest speed supported (PCIe Gen4 - Gen1) by each component connected to individual port. This allows you to mix various generation of equipment without scarifying performance between high speed components.

PCIe IO Expansion

Several PXIe systems can be interconnected to multi rack system using direct PCIe 4.0 cables. The host PXIe chassis uses one or more MXP909 cards. Each target PXIe system uses a MXP924 in the system slot. The MXP909 can also connect directly to other PCIe target devices compliant to the PCI-SIG Extrnal Cabling Specification 3.0/4.0. The MXS924 1 U Rack mount switch enables scale out to larger transparent PCIe networks. Please contact Dolphin for details.

PCIe Cable ports

The MXP909 module has a quad SFF-8644 PCIe cable connector to allow connectivity to external PCIe devices. Only two upper ports are available for connectivity. Both port can be used as two independent x4 links or one x8 links. Each SFF-8644 connector has a protected 3.3V supply to support AOCs. The MXP909 is carefully designed for maximum copper cable lengths. Fiber optics extends this distance to 100 meters. More info on cable alternatives for the MXP909 switch.

Backplane support

The MXP909 follows the PXISA PXIE-1 rev 2.3 and PXISA PCIE-5 Hardware specification 1.1.



Feature Description
Link Speed 16 GT/s per PCIe Lane.
Application Performance 100ns port latency
PCIe Switch Microsemi PFX Switchtec ® PCI Express Gen4
PCI Express Base Specification 4.0
PCIe Backplane Single PCIe x1- x8 link
PCIe Cable Connections Two SFF-8644 x4 cable Ports
Copper cables and Fiber-Optic cable support 0.5 to to 100 meters
Mechanical Dimensions

3U

Operating Environment DBD
Storage Environment Storage Temperature: -25°C - 70°C
Relative Humidity: 10% - 95% (non- condensing)
Software Dolphin Transparent Board Management software


Regulatory CE Mark
FCC Class A
RoHS
EMC test EN 55032:2012
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3:2013
Operating System All ( no driver required)

MXP908 - PXIe Peripheral NTB Host adapter card with eXpressWare license

MXP909 - PXIe Peripheral Transparent Host adapter

MXP924 - PXIe Gen 4.0 Switch module
