Dolphin PCIe 4.0 / MiniSAS-HD Cables

PCIe 3.0 cable MiniSAS-HD x4 The Dolphin PCIe Gen 4 adapter cards MXH930 and MXH932 use standard quad SFF-8644 cable connectors and supports both Dolphin MiniSAS-HD / SAS-4 cables as well as Gen4 cables compliant to the PCI-SIG External Cabling Specification 3.0 cables (PCIe 4.0). The PCIe 4.0 cables supports the Cable Management Interface (CMI) used for sideband signaling.

Dolphin PCIe 4.0 copper cables with CMI support

Description Length Ordering code
1 meter PCIe 4.0 x4 Copper Cable 1 meter PCIe4C-1M
3 meter PCIe 4.0 x4 Copper Cable 3 meter PCIe4C-3M



Dolphin PCIe 4.0 MiniSAS-HD copper cables without CMI support

Used with the MXH932 cards, some functionality will be limited as these cables does not support the Cable Management Interface functionality (CMI). Please consult the adapter users guide for more details. The MXH930 does not benefit from the CMI functionality.

Description Length Ordering code
1 meter MiniSAS-HD Gen4 x4 Copper Cable 1 meter MS4C1M
3 meter MiniSAS-HD Gen4 x4 Copper Cable 3 meter MS4C3M

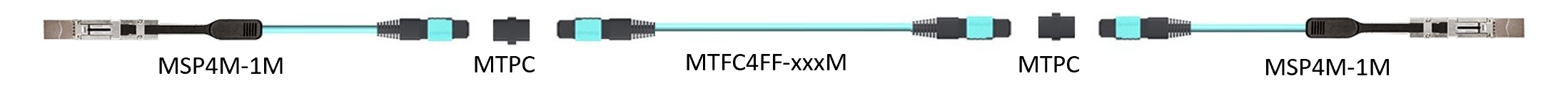

Dolphin PCIe 4.0 MiniSAS-HD Fiber Cables without CMI support

PCIe MiniSAS-HD-HD cables - iPassPlease contact Dolphinfor details.



PCIe Cables for other products

PCIe 3.0 / MiniSAS-HD cables for PCIe Gen 3.0 products.

iPass Cables used by all IXH cards, PXH810, PXH812 and the IXS600 switch.
