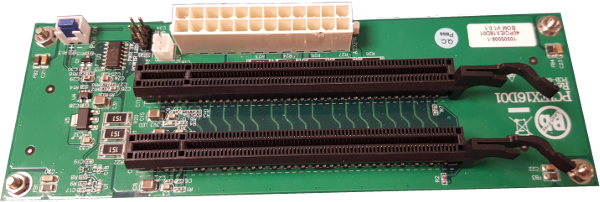

IBP-G3X16-2 Backplane

2 slot x16 Gen3 PCI Express Backplane

The IBP-G3X16-2 is EOL and replaced by the IBP-G4X16-2 backplane.

Dolphin’s IBP-G3X16-2 two slot backplane enables customers to establish a remote access to a PCIe device.


  • Two x16 Gen3 slots
  • Gen1, Gen2 and Gen3 compliant
  • Compliant to all Dolphin PXH transparent adapter cards
  • Gen3 8.0 Gbps per lane
  • Compliant to ATX & MicroATX mounting footprint
Build a reflective memory solution with PCI Express

Product Data

Dolphin’s IBP-G3X16-2 two slot backplane enables customers to establish remote access to a PCIe device. The product is compliant to Dolphins PXH812, PXH832 and PXH842 PCIe Gen3 transparent adapter cards. Combined with copper cables or fiber optics, the PCIe device can be up to 100 meters away from the controlling PC.

The backplane comes without a cabinet and power supply, but is compliant to the ATX & MicroATX mounting footprint and power supply standard.

The IBP-G3X16-2 is EOL and replaced by the IBP-G4X16-2 backplane.

Feature Description
Slot Speed x16 Gen3
Active Components No (passive backplane)
PCI Express Base Specification 3.0
Slots 2, One reserved for a PCIe uplink card.
Power Connector ATX 24-Pin Power Connector
Mechanical Dimensions 55.52mm (W) x 164.53mm(L) (ATX & MicroATX Form Factor Mounting)
Regulatory / EMC The product must be installed in a proper ATX or MicroATX compliant cabinet to meet FCC and CE regulatory requirements. It is the customers responsibility to do this before using the product.
Software No

IBP-G3X16-2 - 2 slot PCI Express Gen 3 backplane (EOL)

IBP-G4X16-2 - 2 slot PCI Express Gen 4 backplane

  • Download Users Guide (pdf)
