1. Cluster Configuration

A PCI Express cluster requires a dishosts.conf configuration file for the interconnect topology and the SuperSockets acceleration of existing Ethernet networks, and a networkmanager.conf file that contains the basic options for the mandatory Network Manager. Both of these files should be created using the GUI tool dis_netconfig. Using this tool vastly reduces the risk of creating an incorrect configuration file.

1.1. dishosts.conf

The file dishosts.conf is used as a specification of the PCI Express interconnect (in a way just like /etc/hosts specifies Cluster Nodes on a plain IP based network). It is a system wide configuration file and should be located with its full path on all Cluster Nodes at %SYSTEMROOT%\system32\etc\dis\dishosts.conf (%SYSTEMROOT% is where your windows installation resides, e.g. C:\WINDOWS.).

A syntactical and semantic validation of dishosts.conf can be done with the tooltestdishosts.

The Dolphin Network Manager and diagnostic tools will always assume that the current file dishosts.conf is valid. If dynamic information read from the network contradicts the information read in the dishosts.conf file, Dolphin Network Manager and diagnostic tools will assume that components are mis configured, faulty or removed for repair.

dishosts.conf is by default automatically distributed to all Cluster Nodes when the Dolphin Network Manager software is started. Therefore, do edit and maintain this file on the Cluster Management Node only. You should create and maintain dishosts.conf by using the Dolphin Network Configurator, dis_netconfig GUI: c:\Program Files\Dolphin Express Dx\util\dis_netconfig or the command line version of the Dolphin Network Configurator, dis_mkconf: %ProgramFiles%\Dolphin Express IX\Util\dis_mkconf.exe

Normally, there is no reason to edit this file manually. To make changes in dishosts.conf effective, the Network Manager needs to be restarted from the start menu.

The following sections describe the keywords used.

1.1.1. Basic settings


The first line of this file should contain an entry specifying what hardware you are going to use. If the #GX-HARDWARE is specified, parsing of the file will assume a generic adapter. This is the default for new eXpressWare 5.5.0 and newer installations.


The first line of this file should contain an entry specifying what hardware you are going to use. If the #IX-HARDWARE is specified, then Dolphin PCI Express IX is expected and the parsing of this file will fail if the hardware that you intended to use is other than Dolphin PCI Express IX.

DISHOSTVERSION [ 0 | 1 | 2 | 3 | 4 | 5 | 6]

The version number of the dishosts.conf is specified after the keyword DISHOSTVERSION. The DISHOSTVERSION should be put on the first line of the dishosts file that is not a comment. DISHOSTVERSION 5 or higher is required for the DIS 5.0 software.

HOSTNAME: <hostname/IP>

Each cluster Cluster Node is assigned a unique dishostname, which has to be equal to its hostname. The hostname is typically the network name (as specified in hosts), or the Cluster Nodes IP-address. Examples:

HOSTNAME: host1.dolphinics.no
ADAPTER: <physical adaptername> <nodeId> <adapterNo> <link width>

A Dolphin network Cluster Node may hold several physical adapters. Information about a Cluster Node's physical adapters is listed right below the hostname. All Cluster Nodes specified by a HOSTNAME need at least one physical adapter. This physical adapter has to be specified on the next line after the HOSTNAME. The physical adapters are associated with the keyword ADAPTER. The link width is PCI Express link width x4 or x8.

#Keyword  name            nodeid    adapter    link width
ADAPTER: host1_a0           4         0            8
ADAPTER: host1_a1           4         1            8
REDUNDANT: <virtual adaptername> <physical adaptername 1> <physical adaptername 2>

Defines a virtual redundant adapter comprising two physical adapters, which will be used for automatic fail over in case one of the fabrics fails.

REDUNDANT:    host1_r  host1_a0 host1_a1

1.1.2. Persistent adapter numbers

ADAPTER: <physical adaptername> <nodeId> <adapterNo> <link width> [<serialno>]

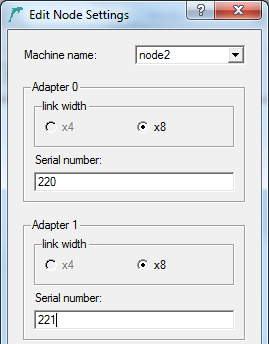

Persistent adapter numbers are supported as optional feature in conjunction with multiple adapters. If enabled, a given physical adapter will be assigned the same adapter number independent of the presence of the other adapters. Without persistent adapter numbers the detected devices will be enumerated starting from zero. To enable persistent adapter numbers, use the cluster editor.

C:\Program Files\Dolphin Express IX\Util> .\dis_mkconf.exe -fabrics 2
-sctt 2 -nodes node1::101 node2:220:221

In the example above, node1 has no serial number assigned to adapter 0, 101 assigned to adapter 1 which makes it persistent. node2 has both adapters specified as persistent: serial number 220 is set for adapter 0, 221 for adapter 1.

Only the serial number must be specified in the cluster editor tools. The adapter type and card revision are not required.

1.1.3. SuperSockets settings

The SuperSockets configuration is responsible for mapping certain IP addresses to the PCI Express network. It defines which network interfaces are enabled for Dolphin SuperSockets.

SOCKET: <host/IP> <physical or virtual adaptername>

Enables the given <host/IP> for SuperSockets using the specified adapter.

In the following example we assume host1 and host2 have two network interfaces each designated host1pub, host1prv, host2pub, host2prv, but only the 'private' interfaces hostXprv are enabled for SuperSockets using a striping adapter:

SOCKET:    host1prv  host1_s
SOCKET:    host2prv  host2_s

Starting with DISHOSTVERSION 2 SuperSockets can handle dynamic IP-to-NodeId mappings. I.e. a certain IP address does not need to be bound to a fixed machine but can roam in a pool of machines. The address resolution is done at runtime. For such a configuration a new type of adapter must be specified:

SOCKETADAPTER: <socket adaptername> [ SINGLE | REDUNDANT ] <adapterNo> [ <adapterNo> ... ]

This keyword basically only defines an adapter number, which is not associated to any NodeId.



Defines socket adapter "sockad_s" in standard mode using physical adapters 0.

Such socket adapters can now be used in order to define dynamic mappings, and, in extension to DISHOSTVERSION 1 whole networks can be specified for dynamic mappings:

SOCKET: [ <IP> | <hostname> | <network/mask_bits> ] <socket adapter>

Enables the given address/network for SuperSockets and associates it with a socket adapter.

It is possible to mix dynamic and static mappings, but there must be no conflicting entries.


SOCKET: host1 sockad_s
SOCKET: host2 sockad_s
SOCKET: host3 host3_s
SOCKET: sockad_s

1.1.4. Miscellaneous Notes

  • Using multiple NodeIds per Cluster Node is supported.This can be used for some advanced high-availability switch configurations.

  • A short version of dishosts.conf is supported for compatibility reasons, which corresponds to DISHOSTVERSION 0. Please note that neither virtual adapters nor dynamic socket mappings are supported by this format.


    #host/IP   nodeid
    host1prv   4
    host2prv   8

1.2. networkmanager.conf

The networkmanager.conf specifies the startup parameters for the Dolphin Network Manager. It is created by the dis_netconfig utility.

1.3. cluster.conf

This file must not be edited by the user. It is a status file of the Network Manager that consists of the user-specified settings from networkmanager.conf and derived settings of the Cluster Nodes. It is created by the Network Manager. cluster.conf is discontinued with eXpressWare 5.5.0 and newer versions and can safely be deleted.
